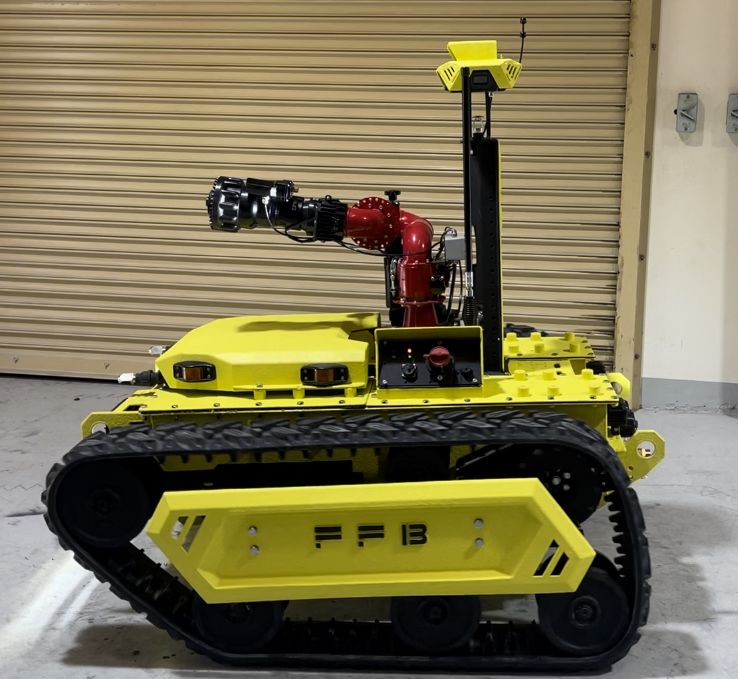

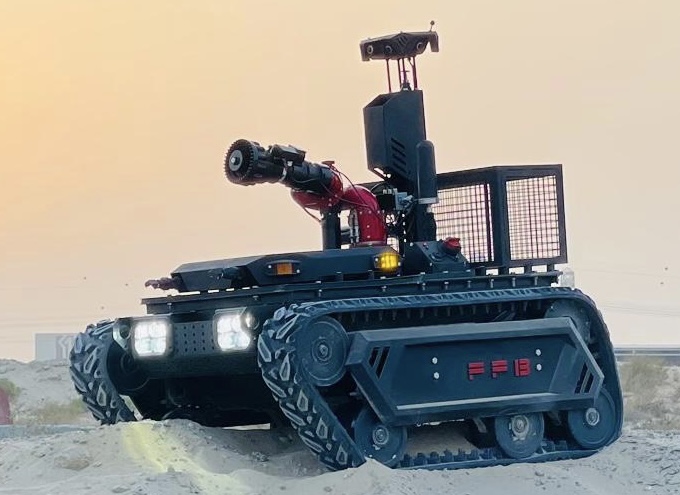

FFB-FW4000

Flow Rate Up to 4800 LPM

Overview of the robot operation

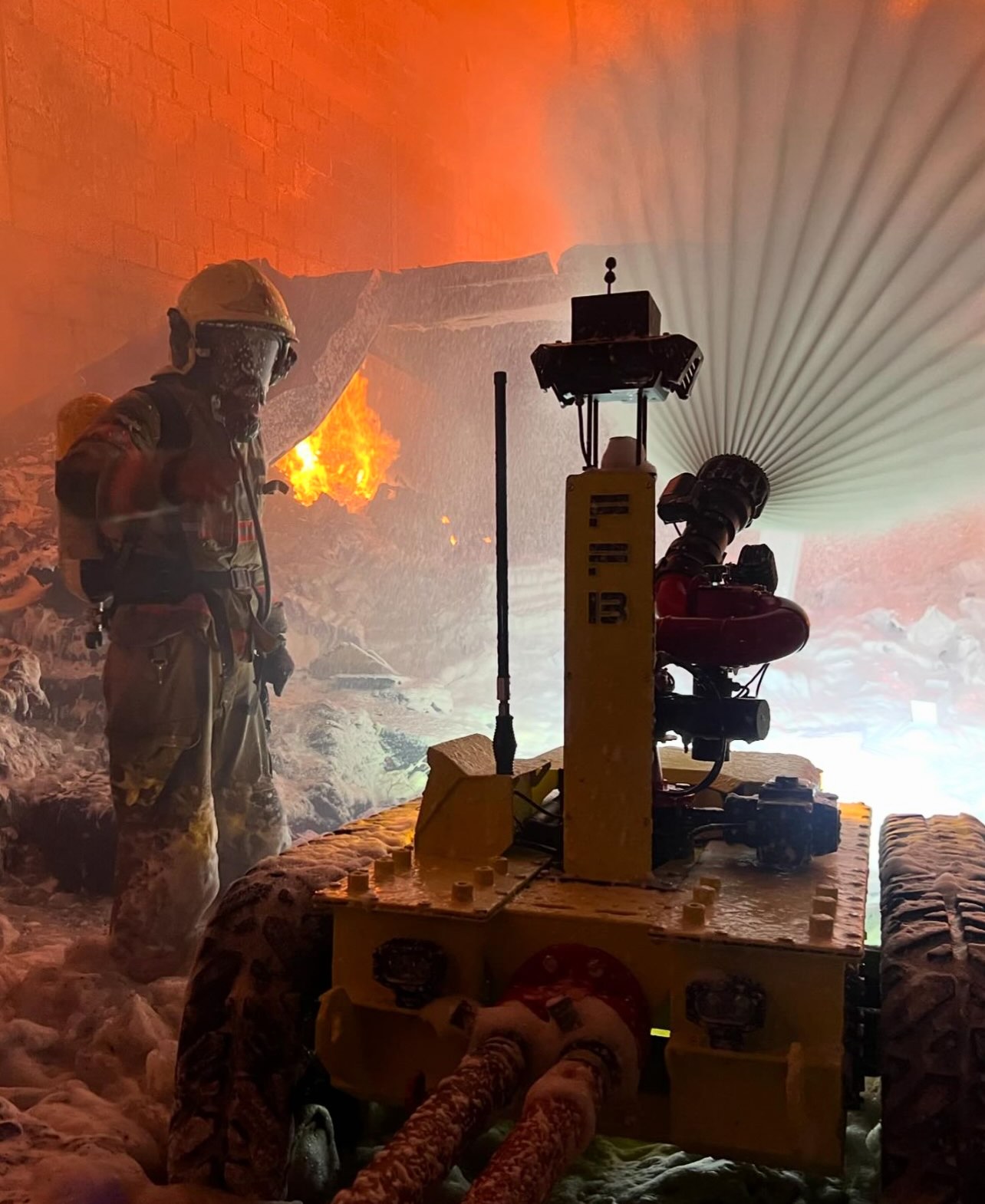

FFB-FW4000 is a remotely operated robot with assistive navigation capabilities that enhance the safety of firefighters and assist them in dangerous, challenging and physically demanding tasks.

Important Features


Control Range

Control Range up to 1000 m

Climbing Stairs

Up to 30 Degrees.

speed

4 speeds up to 8 KM/H

Total Weight

450 KG Carry up to 200 KG

List of some technical specifications
  • FFB-FW4000 Robot can work indoor and outdoor.
  • Flow Rate 4800 LPM
  • Total Weight 450 KG Carry up to 200 KG.
  • Climb up the stairs up to 30 Degrees.
  • 4 speeds selectable up to 8 KM/H.
  • Controlled wirelessly by control station.
  • Control Range up to 1000 meters.
  • Full Control using Industrial Remote Control
  • 6 cameras covering 4 directions (front - back - right- left)
  • Dedicated Camera for extinguisher target direction.
  • Inbound Audio Channel Enables The controller to hear sounds around the robot.
  • Safety Digital Lock for fire extinguisher Releaser.
  • Laser Pointer for pointing extinguishing agent Target.
  • GPS system build routing and maps for robot location and facilitate navigation.
  • Digital Compass acknowledges the Operator with Robot ( Yaw - Pitch - Roll ).
  • 15 Temperature sensing points for motors - Battery - electronic components - robot body - outer temperature.
  • Powerful front flash lights enables the controller officers see clearly during the heavy smoke.
  • Emergency Flashing Orange and Red Lights encourages the viewers to have caution.
  • Siren for Audible warning that helps locate the robot in smoky or low visibility places plus warning the inhabitants with fire existing.
Download full specifications of the robot FFB – FW4000
